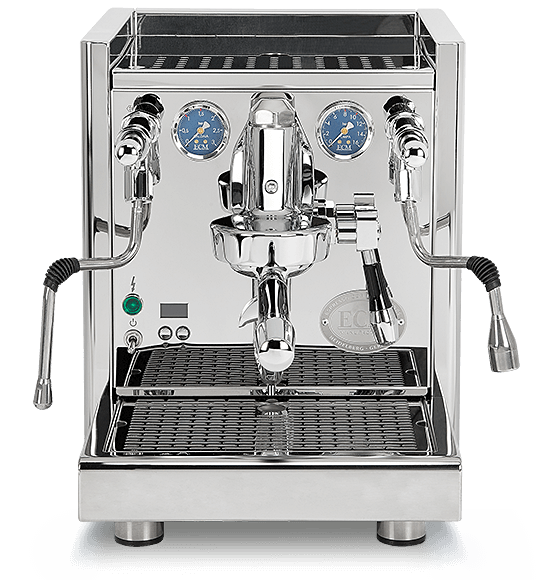

ECM Technika VI — Dual Boiler, Rotary Pump
The Technika VI is ECM's dual-boiler take on a machine that spent most of its life as a heat exchanger. Two independently PID-controlled stainless boilers, a rotary pump, and ECM's own brew group — handmade in Germany, and ready to brew in around eleven minutes.
This is the sixth-generation Technika, and the change that matters is architectural. Where earlier Technika models used a single boiler with a heat exchanger, the VI runs a dedicated 0.5-litre coffee boiler alongside a 1-litre steam and hot water boiler. Both are stainless steel, both have their own PID temperature control, and — the part ECM leads with — both heat simultaneously rather than in sequence. Paired with the Fast Heat-Up mode, that is what gets the machine to brewing temperature in roughly eleven minutes instead of the long warm-up an E61-style group usually demands.

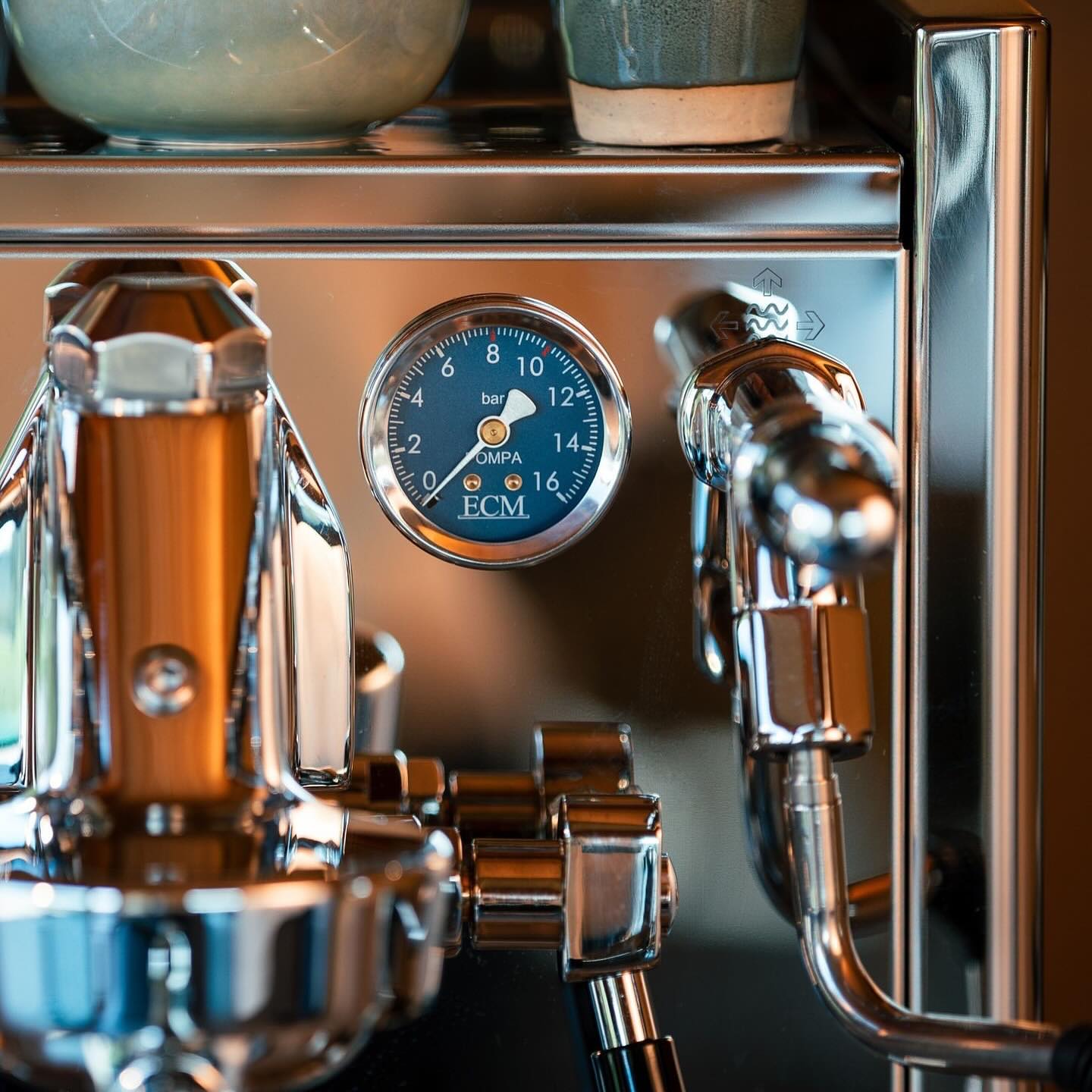

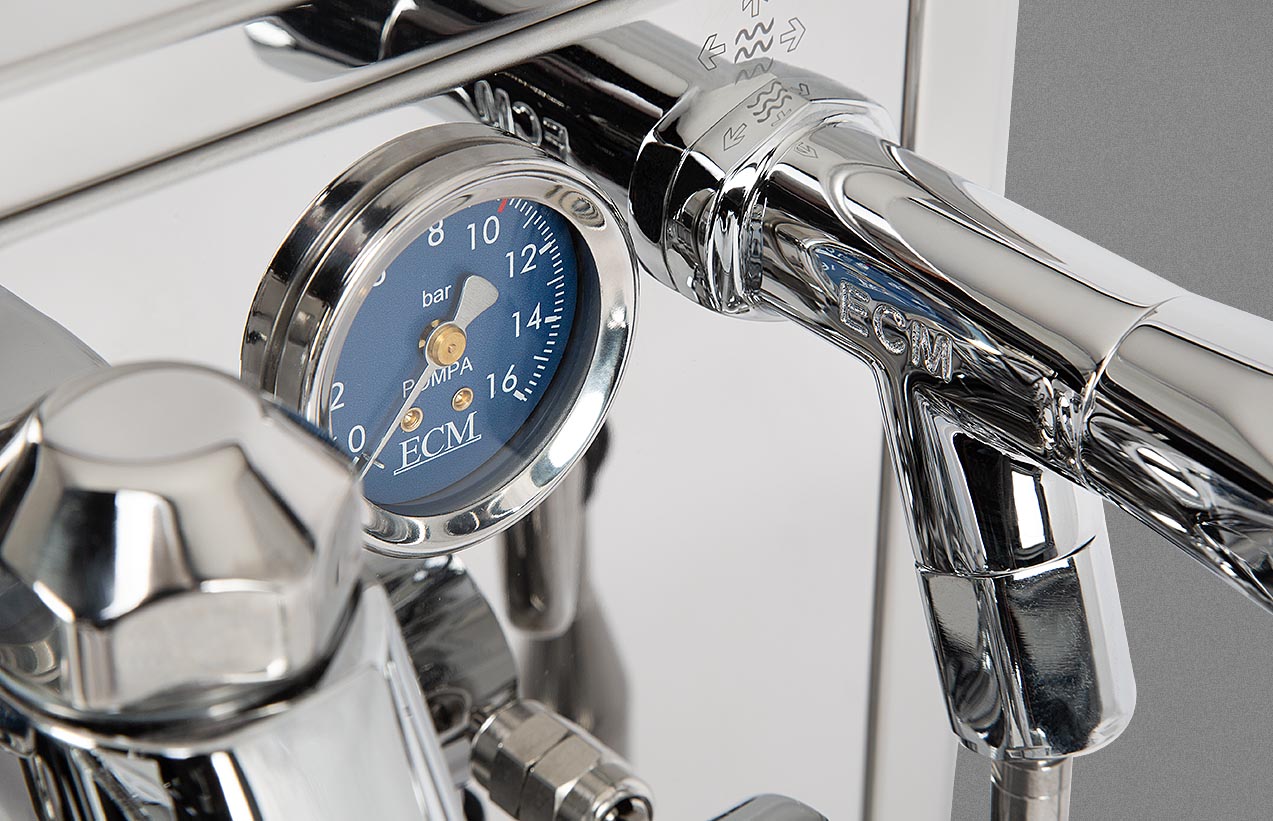

The rest of the platform is familiar ECM. Lever valve technology on the brew group, a rotary pump that runs noticeably quieter than a vibration pump and can be plumbed to a fixed supply or fed from the tank, blue-faced pump and boiler pressure gauges, and a discreet display for the settings that used to require dip switches. It sits in ECM's Home Line, which is the range aimed at people who want commercial-grade internals on a domestic bench.
- Dual Boiler
- Rotary Pump
- PID Both Boilers
- Fast Heat-Up
- Plumbable Or Tank
- Handmade In Germany
What the Technika VI actually gives you
Simultaneous boiler heating
Both boilers come up together rather than one after the other. Combined with Fast Heat-Up mode, ECM rates the machine as ready to brew in about eleven minutes — short for a machine of this class.
Independent PID on each boiler
Brew temperature and steam pressure are controlled separately, so you can chase a lighter roast without giving up steam power. Offset adjustment (E11) lets you calibrate the reading against what the group actually delivers.
Adjustable pre-infusion
Both active and passive pre-infusion modes, with the timing precisely adjustable. That is real control over the early phase of the shot, not a fixed factory ramp you have to work around.
Rotary pump, plumbed or tank
Quieter and more consistent in flow than a vibration pump. Run it from the roughly 3-litre tank, or connect it to mains using the metal hose included in the box.
Living with it day to day

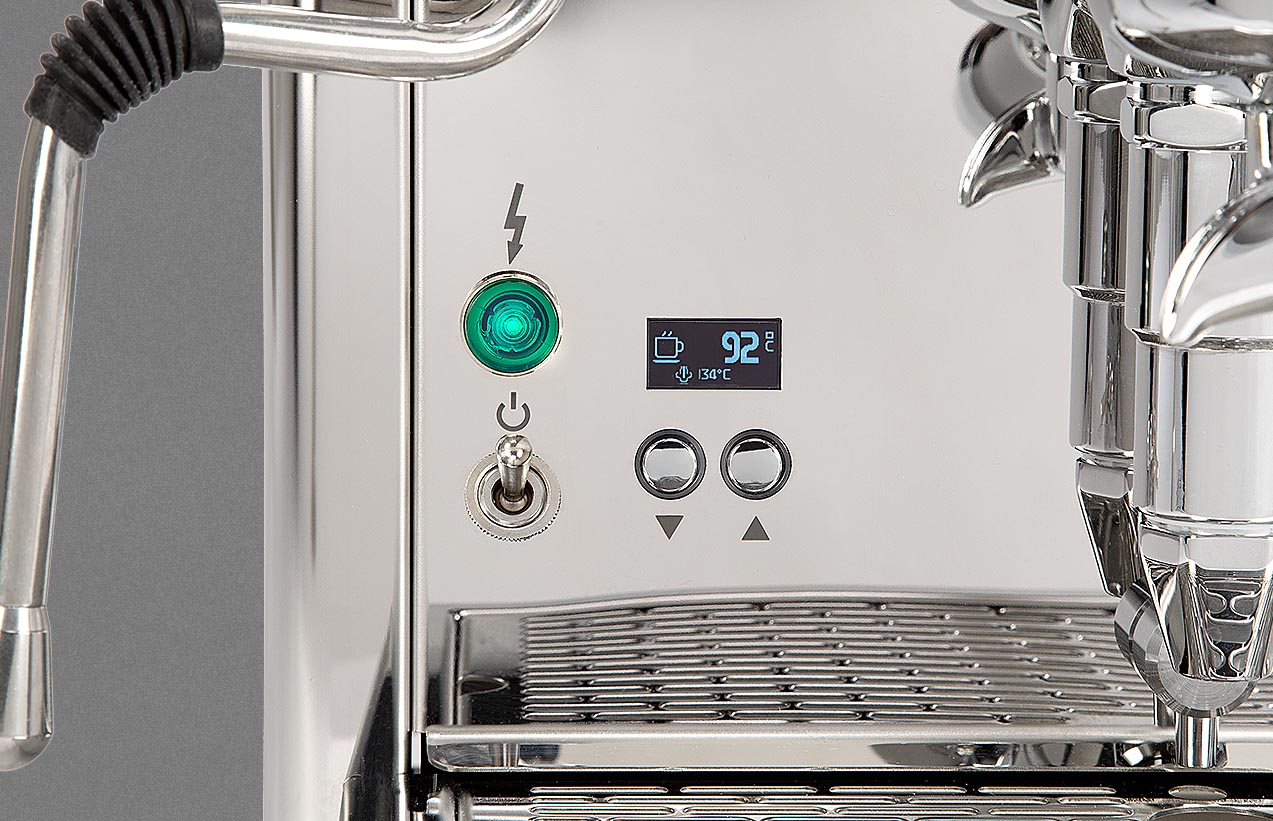

The software side is where the VI earns its keep as a daily machine. Two programmable on/off times per day mean it can be hot before you are awake and off again after the morning rush without touching a switch. ECO mode drops power draw during idle stretches. Clean Mode (CLn) tracks when the group is due for a backflush, and the filter reminder (FL) prompts you when the water filter needs replacing. Temperature reads in °C or °F, so you are not converting in your head.
Who it suits
- Home baristas who want to brew and steam at the same time without waiting on a single boiler to switch modes
- Anyone moving up from a heat exchanger and wanting genuine independent temperature control
- Milk-drink households — the 1-litre steam boiler has the headroom for back-to-back cappuccinos
- Kitchens where the machine can be plumbed in, or where a 3-litre tank refill is not a chore
- Owners who intend to keep a machine a long time and value a serviceable, handmade German build
Specifications
| Brand |
ECM Manufacture, Germany |
| Model |
Technika VI (Home Line) |
| System |
Dual boiler with rotary pump, simultaneous boiler heating |
| Brew group |
ECM brew group with lever valve technology |
| Coffee boiler |
Approx. 0.5 litres, stainless steel |
| Steam / hot water boiler |
Approx. 1 litre, stainless steel |
| Water supply |
Approx. 3 litre tank, or fixed connection via included metal hose |
| Temperature control |
PID on both boilers, discreet display |
| Gauges |
Pump pressure and boiler pressure, blue faces |
| Pre-infusion |
Active and passive, precisely adjustable timing |
| Software features |
Fast Heat-Up, ECO mode, Clean Mode (CLn), filter reminder (FL), two daily on/off times, °C/°F, offset adjustment (E11) |
| Dimensions (W × D × H) |
325 × 470 × 385 mm, without portafilter |
| Weight |
28 kg |
| Manufacturer item no. |
CM100021-00 |
In the box
One portafilter with a single spout and one with a double spout, a 7 g single-shot basket, a 14 g double-shot basket, a blind filter basket for backflushing, a tamper, a cleaning brush, a metal hose for direct water connection (1/8″ to 3/8″ BSPP), and the user manual.
Preorder: this unit is listed as a preorder, with the incoming shipment expected mid-September. Placing an order secures a machine from that shipment. Timing on inbound freight can move, so get in touch via our contact page if you need a firmer date before committing.
Getting the best out of it
Water is the single biggest factor in how long a dual-boiler machine lasts. Both boilers here are stainless, but scale still forms on heating elements and in the group, and New Zealand water hardness varies a lot by region. Use filtered or appropriately treated water from day one and keep up with the FL filter reminder — it is far cheaper than a descale job on a 28 kg machine.
Grind quality is the other half of the equation. A machine with adjustable pre-infusion and PID control will expose an inconsistent grind rather than hide it, so pair it with a decent burr grinder from our home coffee grinder range. If you are still comparing machines, the wider home espresso machine collection has the alternatives side by side, and fresh coffee beans will make more difference to the cup than most equipment upgrades.
Ordering
Freight is calculated at checkout. Payment plan options are set out on our finance options page, and cover terms are detailed in the returns and warranty policy. For questions about the machine, plumbing it in, or the preorder timeline, call 09 9779924 or use the contact page.
Frequently asked questions
Is the Technika VI a true dual boiler?
Yes. It has two separate stainless steel boilers — a coffee boiler of approximately 0.5 litres and a steam and hot water boiler of approximately 1 litre — each with its own PID temperature control. This is a change from earlier Technika models, which used a heat exchanger design.
How long does it take to heat up?
ECM rates the Technika VI as ready to brew in around eleven minutes. Both boilers heat simultaneously rather than one after the other, and the Fast Heat-Up mode shortens the wait further when you need to get started sooner.
Can I brew espresso and steam milk at the same time?
Yes. Because the coffee boiler and the steam boiler are independent, you can pull a shot while steaming milk without either function waiting on the other. The 1 litre steam boiler gives enough headroom for back-to-back milk drinks.
Does the Technika VI have to be plumbed in?
No. It runs from the approximately 3 litre water tank as supplied. If you would rather not refill a tank, it can be connected to a fixed water supply using the metal hose included in the box, which is sized 1/8 inch to 3/8 inch BSPP.
What is the difference between active and passive pre-infusion?
Passive pre-infusion wets the puck using line or expansion pressure before the pump engages fully, while active pre-infusion drives the pre-wetting phase with the pump at a controlled duration. The Technika VI offers both, with the timing precisely adjustable, so you can tune the start of the shot to the coffee you are using.
How big is it and will it fit under my cabinets?
The machine measures 325 mm wide, 470 mm deep and 385 mm high without the portafilter fitted, and weighs 28 kg. Allow clearance above the 385 mm height for lifting the lid and filling the tank, and check your bench can carry the weight.
What warranty applies to this machine?
Cover terms are set out in full on our returns and warranty policy page. If you would like the specifics confirmed for this model before you order, contact us on 09 9779924 or through the contact page and we will talk you through it.
