Description

Di Pacci — 83mm Flat Burr Grind-by-Weight Commercial Grinder

Ceado Rev Steel WAM Grinder

The Ceado Rev Steel WAM is an 83 mm flat-burr on-demand grinder that doses by weight, so every portafilter gets the same grams no matter how the beans or the day change.

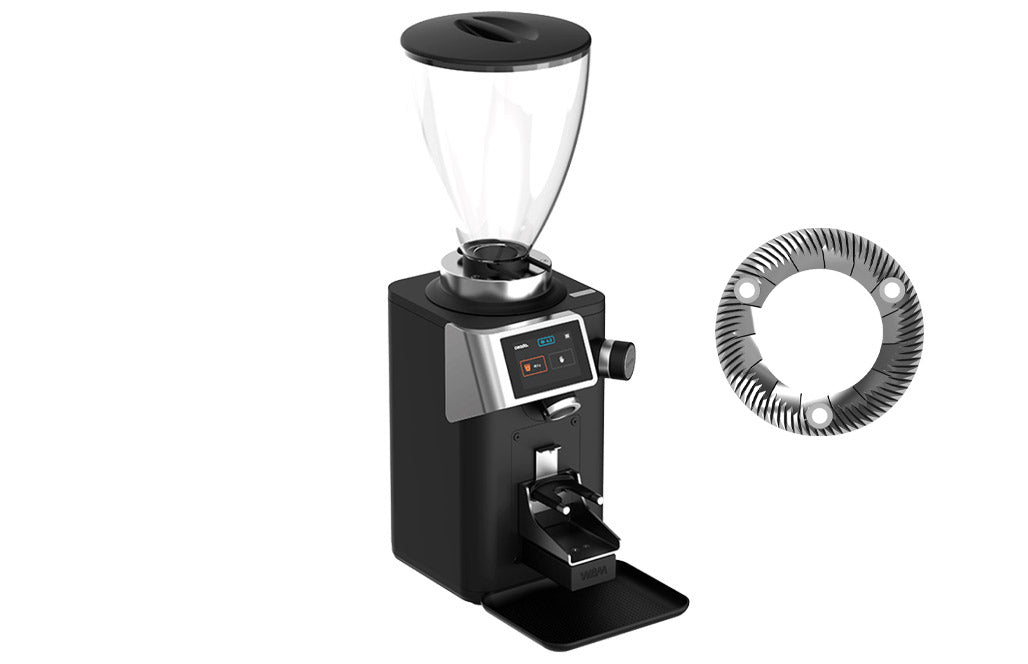

The Ceado Rev Steel WAM pairs 83 mm C83 steel flat burrs with Ceado's Weight Adjustment Module (WAM), which weighs the coffee as it grinds and stops at the target dose. Behind the burrs sits Ceado's Grounds Temperature Management: a 2.5 kg grind chamber, shaft insulation and active internal airflow to keep the grind stable through a busy service, plus the Steady Lock system to hold burr distance as the grinder warms up.

This is the WAM version of the Rev Steel, supplied with the weight module fitted, rather than the time-dosed standard model. The C83 steel burrs are designed for espresso blends with a balance of body and clarity and are rated for around 900 kg of coffee. Grind size is set steplessly with a digital reference on the touch display, and burr access needs just three screws.

83 mmC83 steel flat burrs
By weightWAM dosing
900 kgRated burr life
66 dBNoise level
⚖️ Grind by Weight ⚙️ 83 mm Flat Burrs 🌡️ GTM Cooling 🔒 Steady Lock 📱 Touch Display 🔇 66 dB 🇮🇹 Made in Italy ✅ In Stock — Australia
Best for: ☕ Busy specialty cafes · ⚖️ Recipe-driven bars · 🧑‍🤝‍🧑 Multi-barista teams · 🏨 Hotels · 🏢 Coffee roaster cafes
Free standard shipping Australia-wide on orders over $200. Standard shipping is $14.95 for orders below $200. Same-day dispatch for orders placed before 2PM, with secured, tracked delivery.
All Ceado Commercial Grinders Finance Options Talk to an Expert — (02) 9758 0760

Key Features of the Ceado Rev Steel WAM

⚖️ Weight Adjustment Module

Weighs the coffee as it grinds and stops at your target dose, so changes in bean density or humidity don't change the grams in the basket.

⚙️ 83 mm C83 steel burrs

Flat burrs designed for espresso blends, balancing body and clarity, with a rated life of about 900 kg.

🌡️ Grounds Temperature Management

A 2.5 kg grind chamber, insulated shaft and active airflow keep grind temperature stable at any pace.

🔒 Steady Lock

A counteracting system offsets heat expansion so burr distance, and particle size, stays consistent through service.

🔇 Quiet by design

The motor is separated from the burrs on a suspension system, with rubber rings to cut vibration. Ceado rates it at 66 dB.

🔧 Three-screw burr access

The top of the grind chamber comes off with three screws for cleaning, without losing your grind setting.

Why Grinding by Weight Beats Grinding by Time

A timed grinder delivers a set number of seconds of grinding. The grams that come out of those seconds drift as beans age, the hopper empties or you change grind size.

  • On a timed grinder, a finer grind setting slows output, so the same time gives a smaller dose unless someone re-calibrates.
  • WAM measures the actual weight of coffee as it grinds and stops at the programmed dose.
  • Staff no longer need to weigh and top up each basket, which saves time and keeps every shot on recipe.

The result is consistent dose, and therefore consistent extraction, across every barista and every shift, with less coffee wasted on corrections.

Complete Technical Specifications

Product Information
Brand Ceado
Model Rev Steel WAM
Colour Black
SKU RAN4634S
Warranty 12 months parts & labour via Di Pacci
Burrs & Grinding
Burrs C83 flat, 83 mm, steel
Rated burr life Approx. 900 kg
Burr speed 1480 rpm at 50 Hz
Average output Approx. 4 g per second at 50 Hz

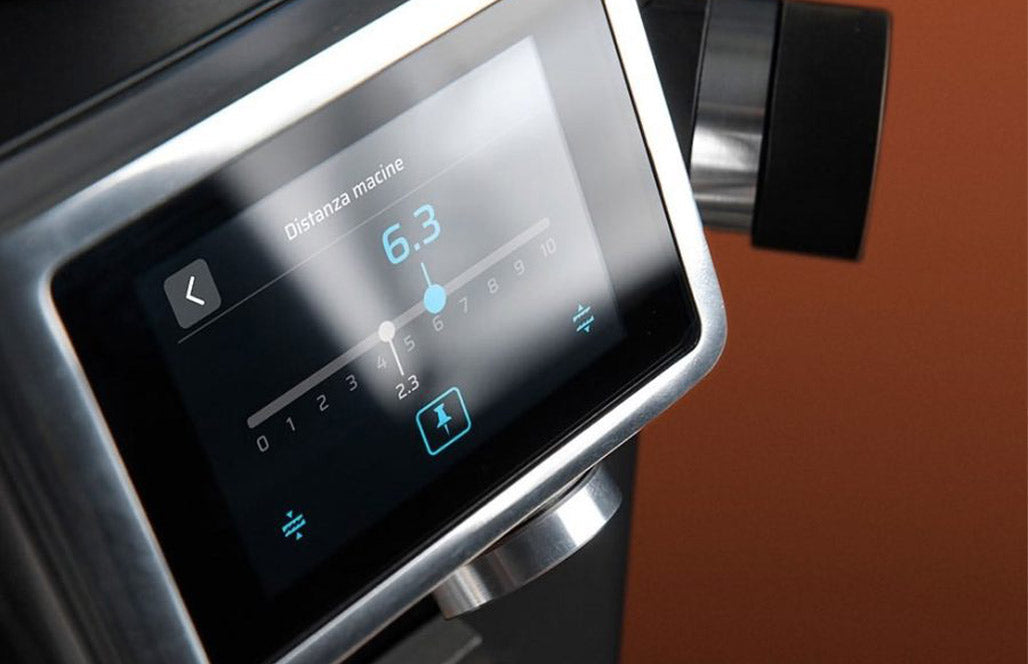

Adjustment Stepless, with digital grind reference
Dosing & Controls
Dosing By weight, via Weight Adjustment Module (WAM)
Display Multifunction touch display
Temperature & Noise
Grounds Temperature Management 2.5 kg grind chamber, shaft insulation, active internal airflow
Burr stability Steady Lock system
Noise 66 dB
Physical & Power
Motor 500 W
Voltage 220 to 240 V
Hopper capacity Approx. 1600 g
Dimensions (W × D × H) 200 × 270 × 590 mm
Net weight 14.4 kg

What's in the Box

  • Ceado Rev Steel grinder with Weight Adjustment Module fitted
  • Bean hopper
  • Catch tray

Weight dosing works best with a consistent portafilter set; bring your baskets to a showroom and we'll set your recipes up.

Rev Steel WAM vs Rev Steel Standard

Ceado sells the Rev Steel with and without the weight module. Burrs, motor and body are the same.

Feature Rev Steel WAM Rev Steel (standard)
Dosing By weight By time
Burrs 83 mm C83 steel 83 mm C83 steel
Temperature control GTM and Steady Lock GTM and Steady Lock
Recalibration as beans change Not needed for dose Needed to hold dose
Best suited to Recipe-driven, multi-barista bars Classic blend, fast push-and-grind workflow

Di Pacci recommendation: Choose the WAM version if you want every shot on recipe without weighing baskets by hand. Don't bother if your team is happy with timed dosing and you want to save on the module; the Ceado Rev Steel standard uses the same burrs and cooling.

Best Machines for the Ceado Rev Steel WAM

Weight-based dosing shines on a machine that holds temperature just as tightly.

Machine Type Why it pairs well
La Marzocco Linea PB Dual boiler, saturated groups Stable brew temperature to match a stable dose
Fiamma Caravel 2 Group Compact Compact 2 group A tight footprint suits the Rev Steel's slim 200 mm body
Astoria Sabrina Heat exchanger, volumetric Volumetric shots plus weighed doses for repeatable recipes

Browse the complete commercial coffee machine range for more options.

Who This Grinder Is For

✓ Ideal if you:
  • Want every dose weighed automatically
  • Run a team of baristas on a set recipe
  • Pour espresso blends that suit flat steel burrs
  • Want a grinder that stays consistent through a long rush
  • Have limited bench width; it's only 200 mm wide
✗ Consider alternatives if you:

Ceado Rev Steel WAM — Frequently Asked Questions

What does WAM mean on the Ceado Rev Steel?

WAM is Ceado's Weight Adjustment Module. It weighs the coffee as it grinds and stops at the target dose, so you grind by weight instead of by time.

What burrs does the Ceado Rev Steel WAM use?

It uses 83 mm C83 steel flat burrs designed for espresso blends, rated for about 900 kg of coffee.

How big is the Ceado Rev Steel WAM?

It measures 200 mm wide, 270 mm deep and 590 mm high, and weighs 14.4 kg net.

How does the Rev Steel stop the grind heating up?

Ceado's Grounds Temperature Management uses a 2.5 kg grind chamber, shaft insulation and active internal airflow, and the Steady Lock system offsets heat expansion so burr distance stays the same.

Is the Ceado Rev Steel WAM noisy?

Ceado rates it at 66 dB. The motor is separated from the burrs and mounted on suspension to reduce vibration and noise.

How hard is it to clean the burrs?

The top of the grind chamber comes off with three screws, and Ceado designed it so you don't need to re-dial your grind setting afterwards.

Why Buy the Ceado Rev Steel WAM from Di Pacci

Genuine Australian stock of Ceado equipment, an in-house service team with parts in stock, five showrooms (Sydney/Roselands, Melbourne, Perth, Port Macquarie, Queensland), in-store demonstrations, expert pairing advice, finance options, free shipping over $200, and a 12 month parts & labour warranty through Di Pacci. Di Pacci Coffee Co. has been in coffee since 2003.
